Passwords

Extended mode with user authentication is available only with both "I am a AbelCam Expert" and "Use BETA features" in Configuration/Options checked.

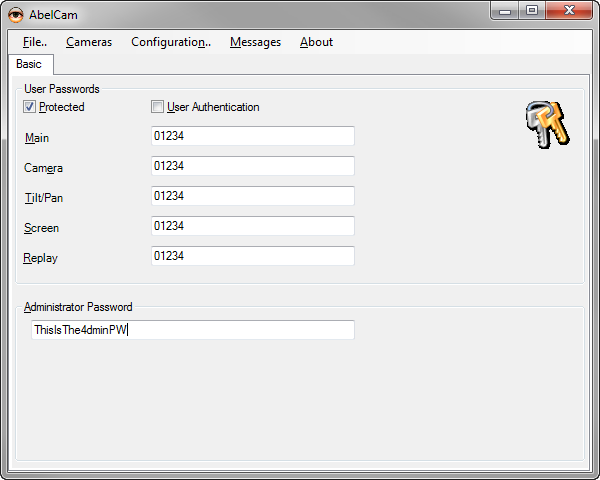

Protected: check this to enable password on the web server

*User Authentication: check this to enable user authentication. )

Main: this is the main password for html pages

Camera: this is the password to access jpeg images and motion jpeg streams

Tilt/Pan: this is the pasword to access Pan/Tilt commands

Screen: this is the password to access the screen capture

If no password is set, no authentification is required.

Administrator Password

Once the admin password is set, the admin interface at

http://localhost:8080/server-admin

becomes available.

Basic Authentication

AbelCam does not check the user name entry in the authentication, only the password has to be correct.

Extended Mode

*) user authentication is available only with both "I am a AbelCam Expert" and "Use BETA features" in Configuration/Options checked.

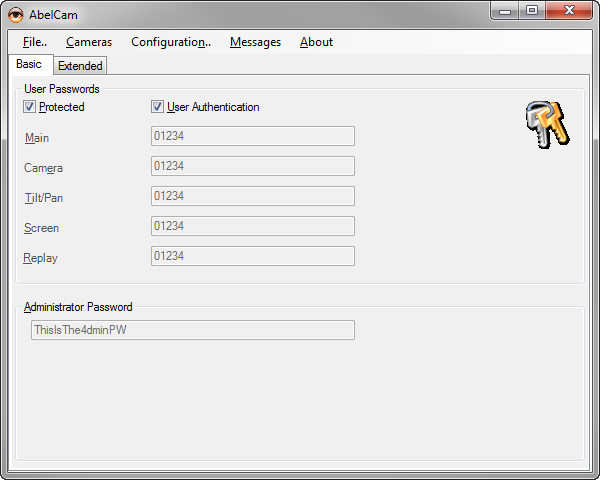

Extended Mode enabled

Once you check User Authentication, the Extended register is visible. It offers the following options:

Extended Mode

Realm

Realms define areas for authentication.

The Main realm is predefined and covers all URLs which have no realm assigned

The Admin realm is predefined and covers all URLs which are related to the web admin interface

You may define as many realms as you like.

Users

Users have Login names, passwords, a expiration date and realms.

The Anonymous user is predefined and is used when there's no authentication.

All other users must have at least one realm assigned.

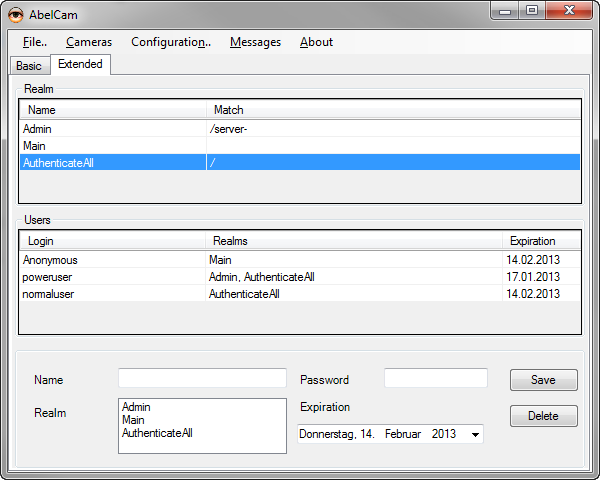

In the example above, the AuthenticateAll realm causes all URLs to require authentication.

The user poweruser may access all web pages including admin pages.

The user normaluser can access all normal pages excluding admin pages.

Anonymous has only the Main realm assigned. As the realm AuthenticateAll includes all possible URLs, authentication is required for all URLs and Anonymous does not have access.

See also: User Authentication in Wiki
